Pfaff Screw Jacks
Pfaff Screw Jacks are Metric Jacks, 2.5 to 1000 kN, dia 14 to 220mm lift screw, strokes to 9m, ball and trapezoidal screws.
The below pdf file is for worm gear screw jacks only.
Motion Technologies are committed to providing the best jacking solutions and support. We stock a comprehensive range of cubic screw jacks and components in the range from 2.5kN to 50kN, choice of worm ratio, rotating or translating screw plus trapezoidal screw diameters from 14 to 80mm diameter.
For screw jack CAD files, click here to generate a CAD file in a choice of the many popular 2D and 2D formats available.
Manufactured by: Pfaff-silberblau
Sold and Serviced by Motion Technologies Pty Limited
Pfaff Winches
Pfaff Winches are designed for hand-cranking it is not only safe but also ergonomic: The friction disk brake equipped with a shuttle valve on our wire rope winch prevents from unintentional lowering of the load in every position. The wire rope winches with tension loads of 150 kg up to 1350 kg have been galvanized in order to improve corrosion protection. Therefore it is especially suitable for outside use.
Stainless steel versions are a robust high-quality wire rope winch LB made of stainless steel V2A is especially suitable for sewage treatment plants, in the chemical industry and for the food industry. It does not matter whether if used as a winch for lifting, the opening of sliders and gates or for the lifting or lowering of wet-pit pumps – our console-mounted hand wire rope effortlessly succeeds.
Manufactured by: Pfaff-silberblau
Sold and Serviced by Motion Technologies Pty Limited
Pfaff Trapezoidal Screws
Pfaff Trapezoidal Screw are a comprehensive standard range for 14mm to 220mm dia, leads from 4mm to 28mm. Carbon and stainless steel, lengths to 9m. Left hand and non standard diameter and leads are available.
Manufactured by: Pfaff-silberblau
Sold and Serviced by Motion Technologies Pty Limited
Pfaff Bevel Jacks
Pfaff Bevel Screw Jacks are primarily used for high speed traverse rates of 320mm/sec and higher. They are available in 4 frame sizes to 100kN with 1, 2 or 3 input shafts and a choice of 2:1 and 3:1 bevel reduction ratio.
Manufactured by: Pfaff-silberblau
Sold and Serviced by Motion Technologies Pty Limited
Pfaff Merkur Stock Series
Cubic screw jacks from 2.5 to 50kN available from Sydney stock.
Manufactured by: Pfaff-silberblau
Sold and Serviced by Motion Technologies Pty Limited
Pfaff EN21 Heavy Duty
Pfaff EN21 Heavy Duty has the following features:
- Standard screw jacks for loads ranging from 0.5 to 75 tons
- Heavy duty screw jacks for loads ranging from 100 to 200 tons
- Special screw jacks for special solutions
- Special screw jacks for repositioning tundishes
- Complete pot lifting systems for coating lines
Manufactured by: Columbus McKinnon
Sold and Serviced by Motion Technologies Pty Limited

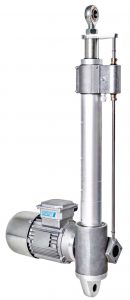

Pfaff Linear Actuators
Pfaff Linear Actuators are high quality, universal uses and low maintenance effort. The performance of the linear actuators is always convincing, it covers all load ranges from 5 – 137 kN at speeds between 5.5 – 250 mm/s. Linear drives always work quickly and position with perfect precision and low noise emissions.
Manufactured by: Columbus McKinnon
Sold and Serviced by Motion Technologies Pty Limited

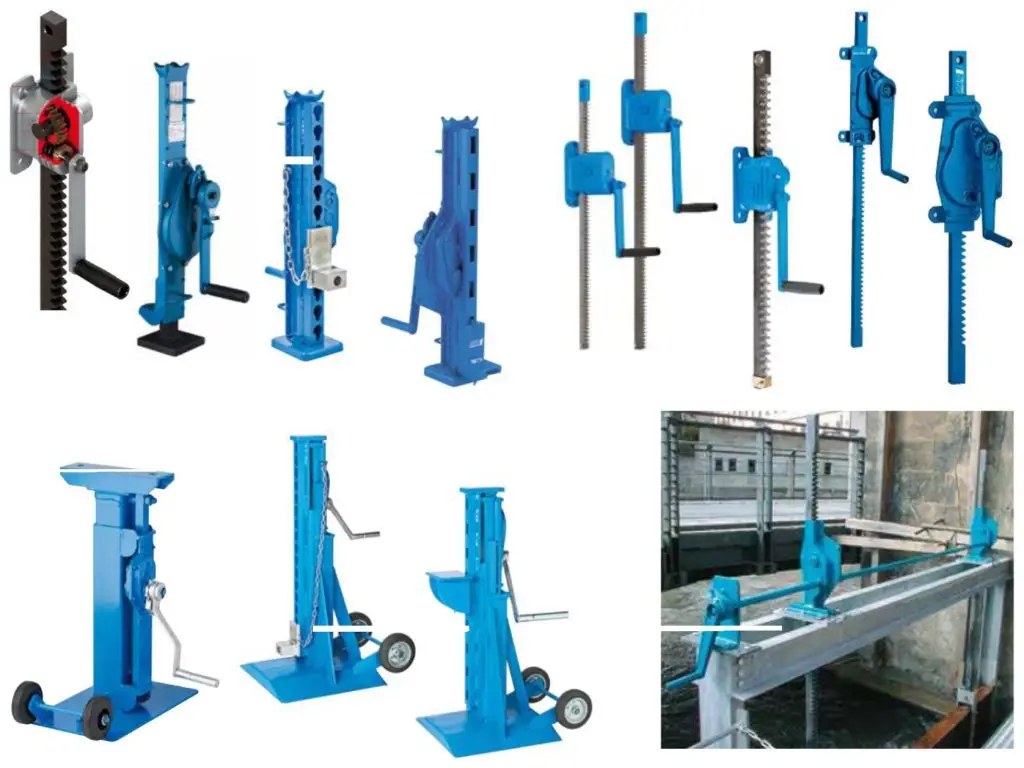

Pfaff Rack and Pinion Jacks
Pfaff Mechanical Rack and Pinion Jacks
Floor or wall-mounted
Capacitates up to 10,000 kg
Rack and Pinion jacks are cost effective lift, push or pull jacks that can be used with all kinds of loads in maintenance and repair, ship building, construction, forestry, agricultural equipment, truck body lifting and sluice gate operation.
Features:
- Floor mounted versions where load is applied to either a claw or the head of the jack.
- Wall mounted versions are used with chains or wire rope
- Optional crank handles for various situations
- By turning the crank handle the jack moves the rack.
- The load is held securely in any position via the crank handle.
- Models available with a height adjustable claw which allows loads to be picked up from different heights.
- Optional shoe foot with a wide base for steady jack placement between railway sleepers.
- Optional body lifting versions with baseplate and mobility wheels
- Complete range of interconnecting gearboxes for multi-jack installations
Manufactured by: Columbus McKinnon
Sold and Serviced by Motion Technologies Pty Limited
Pfaff Stainless Steel Screw Jacks
Columbus McKinnon Stainless Steel Screw Jacks are a new series of stainless steel screw jacks for a load range of 30kN to 250 kN has been designed to meet that harsh requirements of e.g. modern paper machines. This new series is based on a standard modular system which can be combined individually. By application of high-grade steel innovative technology, this lifting solution can absolutely be used for steel hydraulics construction, food industry as well in explosion-proof areas.
Especially for applications in paper manufacture, the new stainless steel series of Pfaff-siberblau is ideal:
- Plate adjustment in refiners
- Lip adjustment and/or positioning
- For tensioning of strainer
- For tensioning of felt for the cover opening of the drying actuator
- As tambour lift
- To lift and lower the tambour
Regardless of whether in basic design as series SHE-S or in swivel design as series SSP – our high quality and innovative technology stands for safety, availability and reliability.
A wide range of options and accessories ensure an optimal tuning between the components (stainless steel flexible shafts, couplings and bevel gear.
Manufactured by: Columbus McKinnon
Sold and Serviced by Motion Technologies Pty Limited
Pfaff Phoenix Telescopic Lifting Column
Columbus McKinnon the ‘PHOENIX’ Telescopic Lifting Column is a compact lifting system with integrated guiding arrangements made of high quality, anodized precision aluminium profiles, worm gear screw jacks from the MERKUR range and directly mounted motor. They can be used independently or as a complete lifting system. Synchronisation can be effected electric or via a mechanical connection by means of articulated shafts. Loads to 25,000N, 1000mm stroke.
Manufactured by: Columbus McKinnon
Sold and Serviced by Motion Technologies Pty Limited
